SPECIFICATIONS

Actuator Mode: With Manual And Instruction

Brand Name: NoEnName_Null

Certification: None

Choice: yes

High-concerned chemical: None

Material: Alloy

Origin: Mainland China

Power: Manual

Power Source: DC

Pressure: Medium Pressure

Standard or Nonstandard: Standard

Structure: control

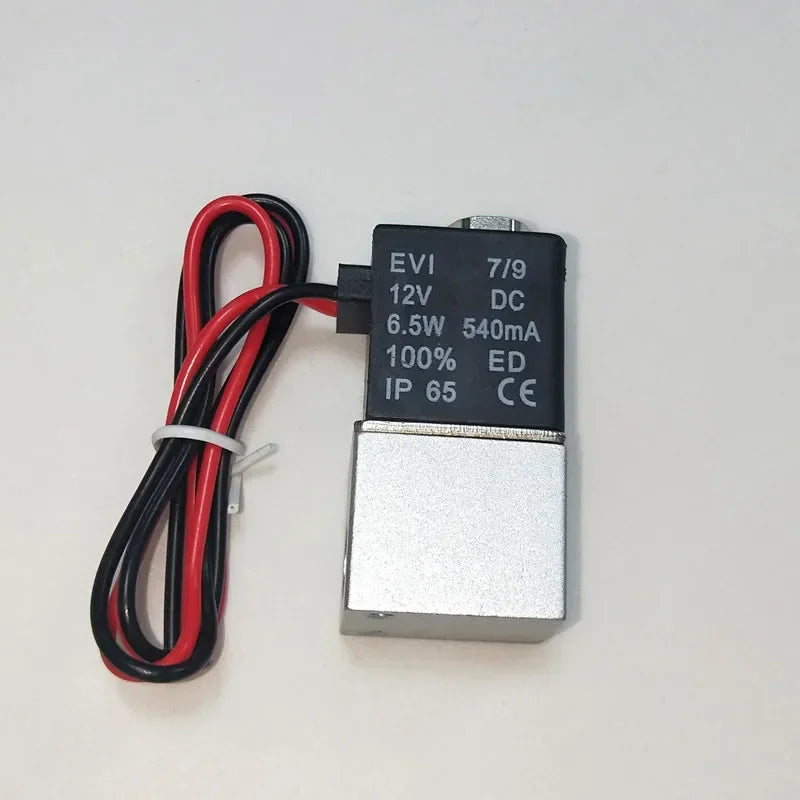

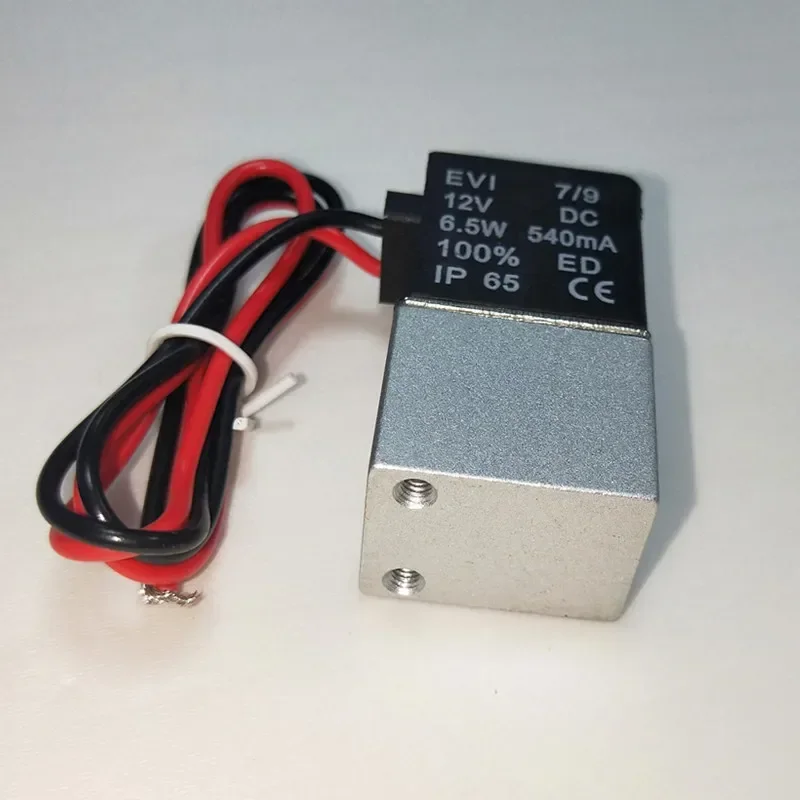

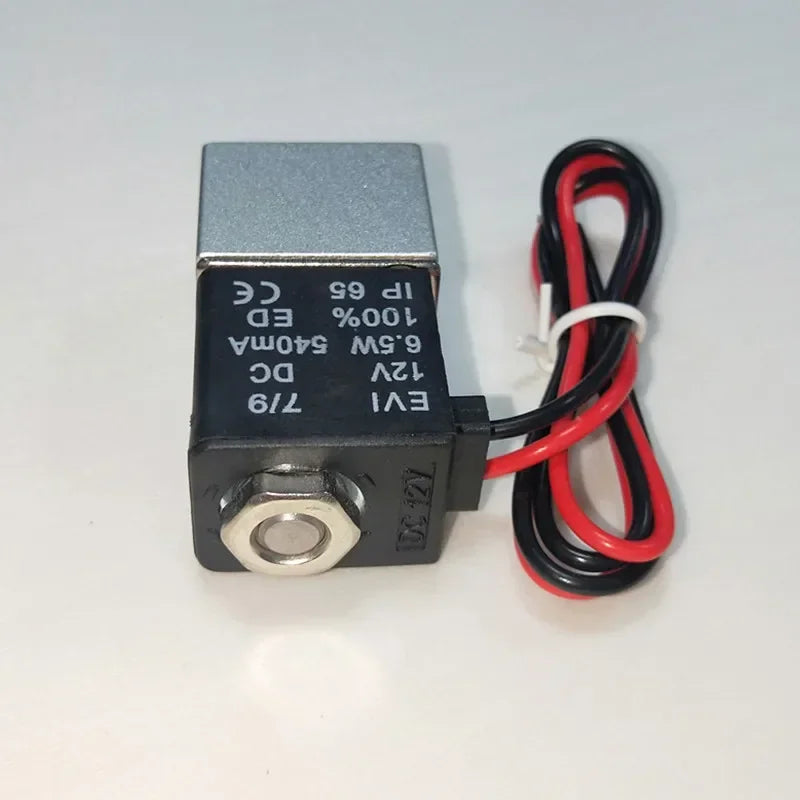

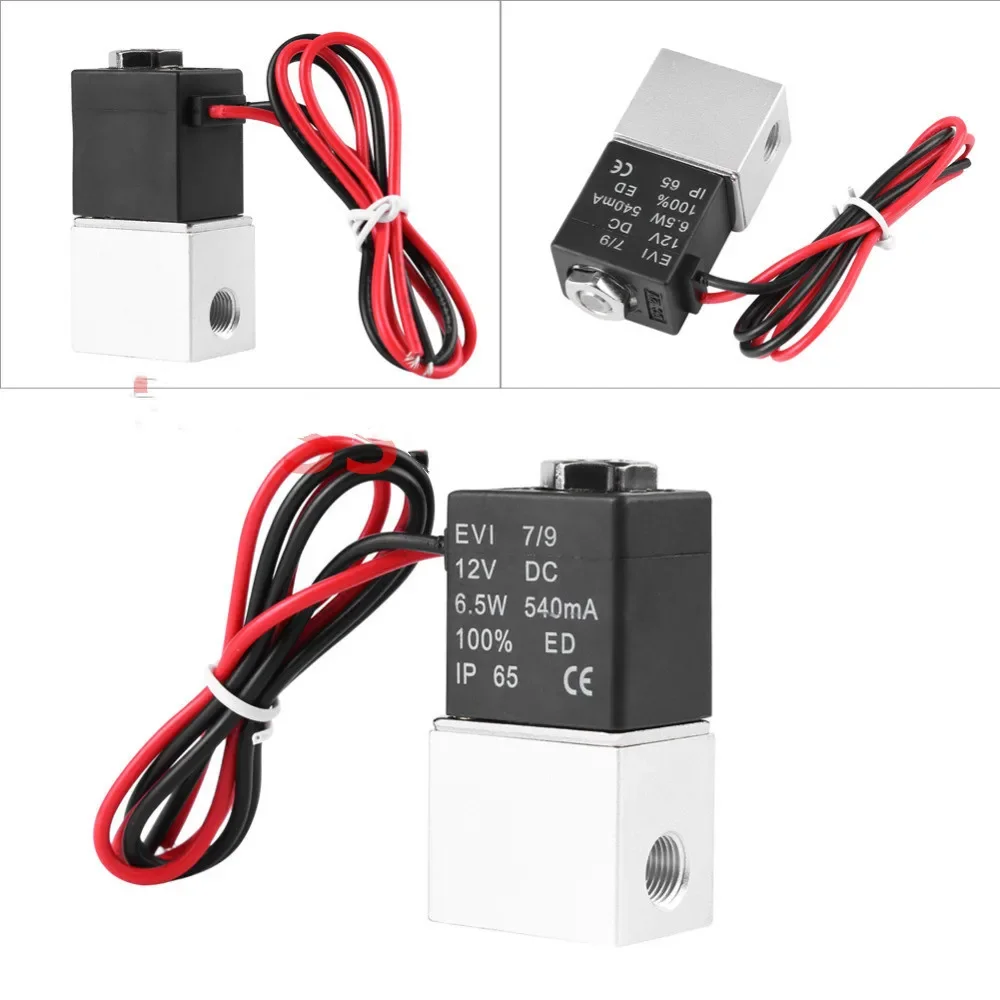

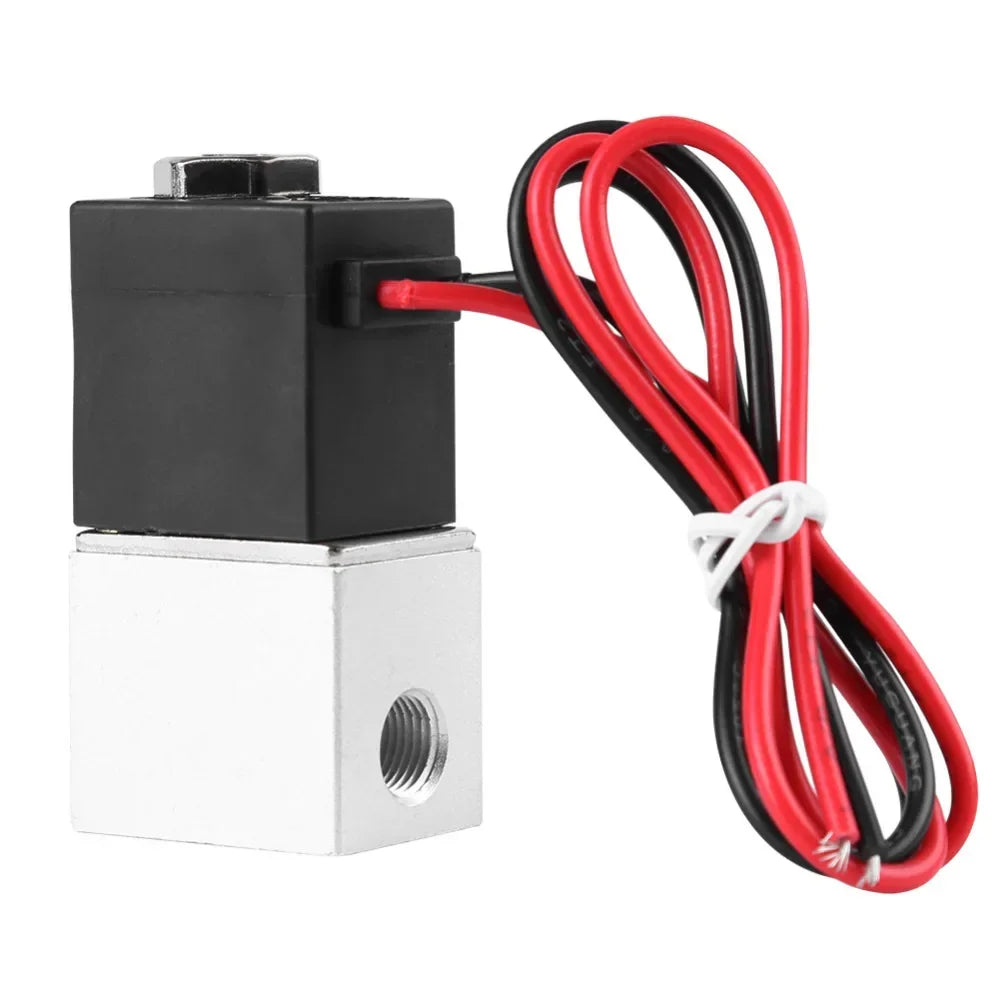

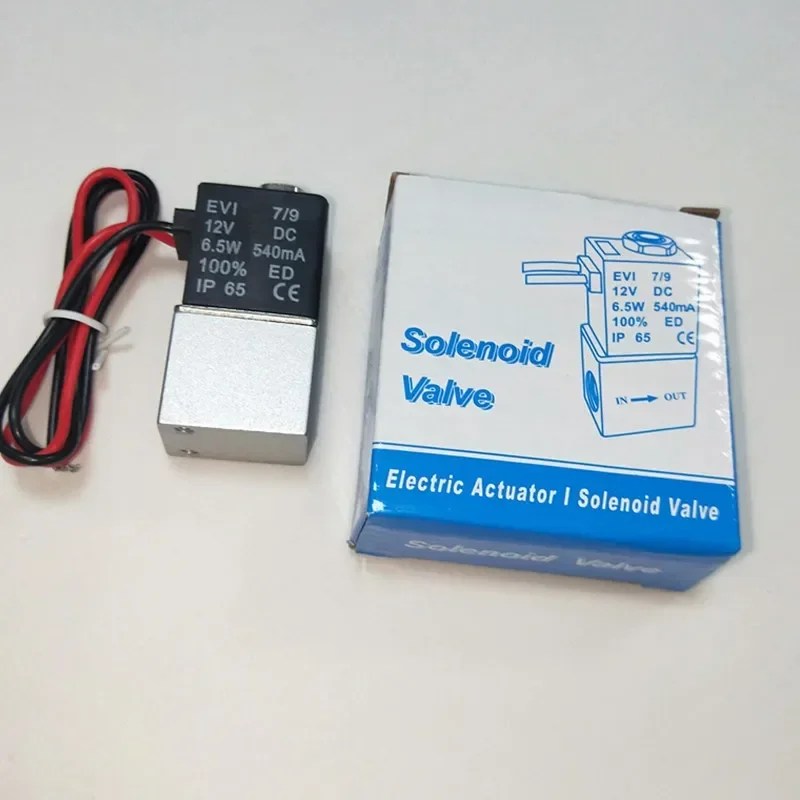

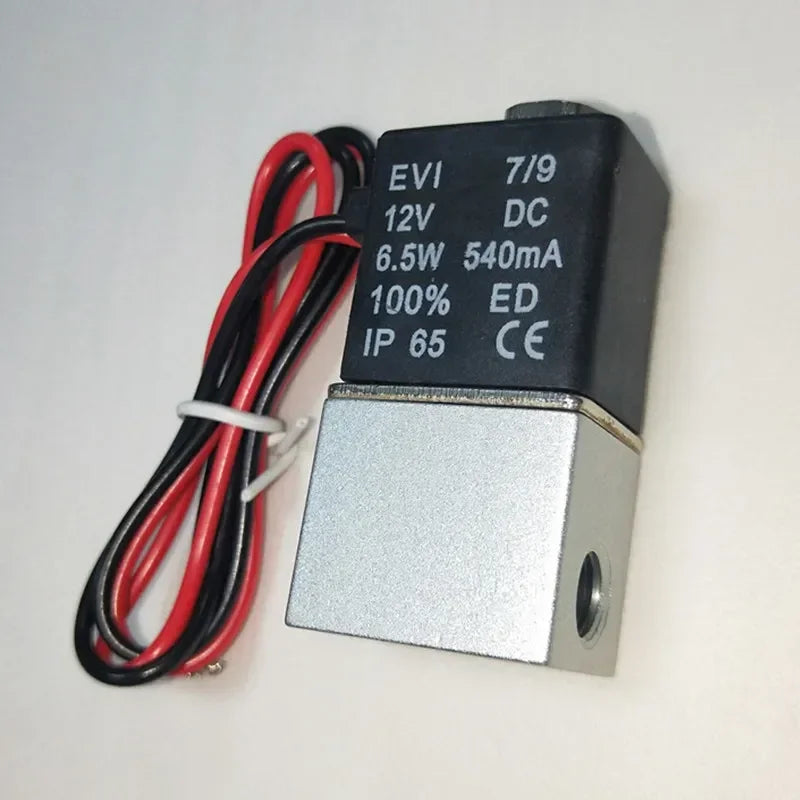

DC 12V Solenoid Valve 1/4" 1/8" 2 Way Normally Closed Direct-acting Pneumatic Valves For Water Air Gas

Specifications

Model Number: 2V025-1/4-12VDC/2V025-1/8-12VDC

Valve Type: 2 Way Normally Closed (Valve opens with energized)

Port Size: 1/4" NPT Female Port,1/8" NPT Female Port

Coil Voltage: DC12V

Service Media: Air, Gas, Liquid, Water

Operation Model: Direct Acting

Flow Model: Uni-Directional

Flow Rate: 0.23Cv (Fluid Flow)

Response Time: Less than 50 ms

Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))

Operating Temperature: -10 to 80 °C

Coil Power: 6.5W

Material:

Body Material: Aluminum

Seal Material: NBR (Buna N)

Armature Tube Material: Brass

Plunger & Spring Material: Stainless Steel

Package included

1 x  Solenoid Valve
