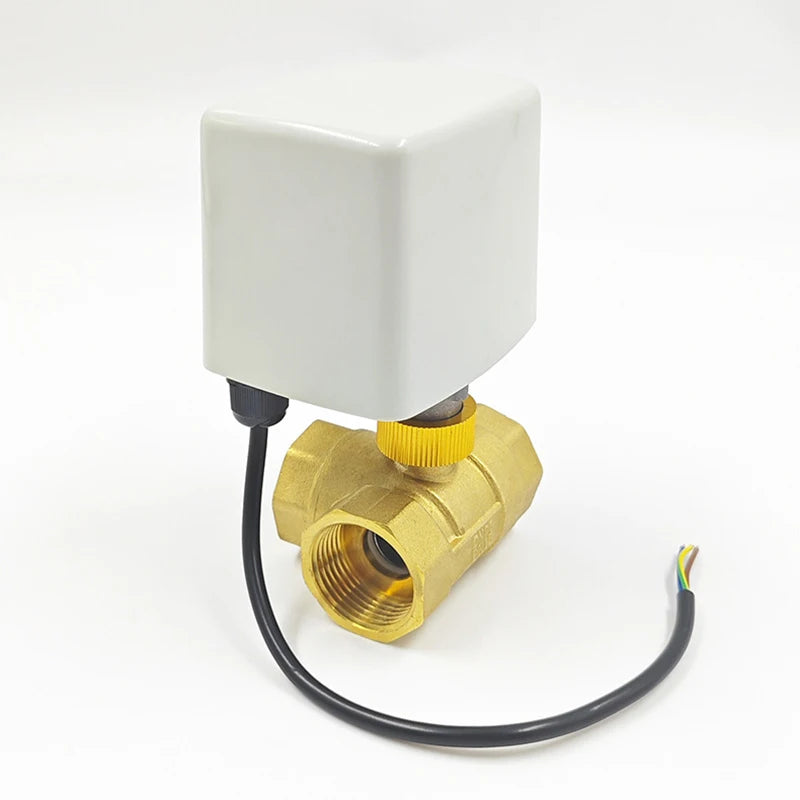

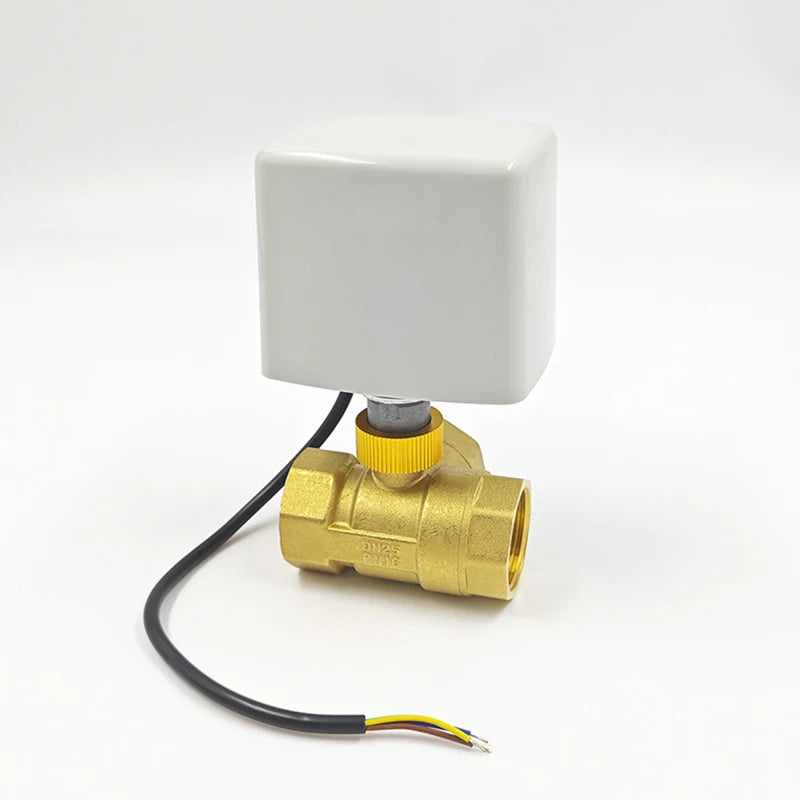

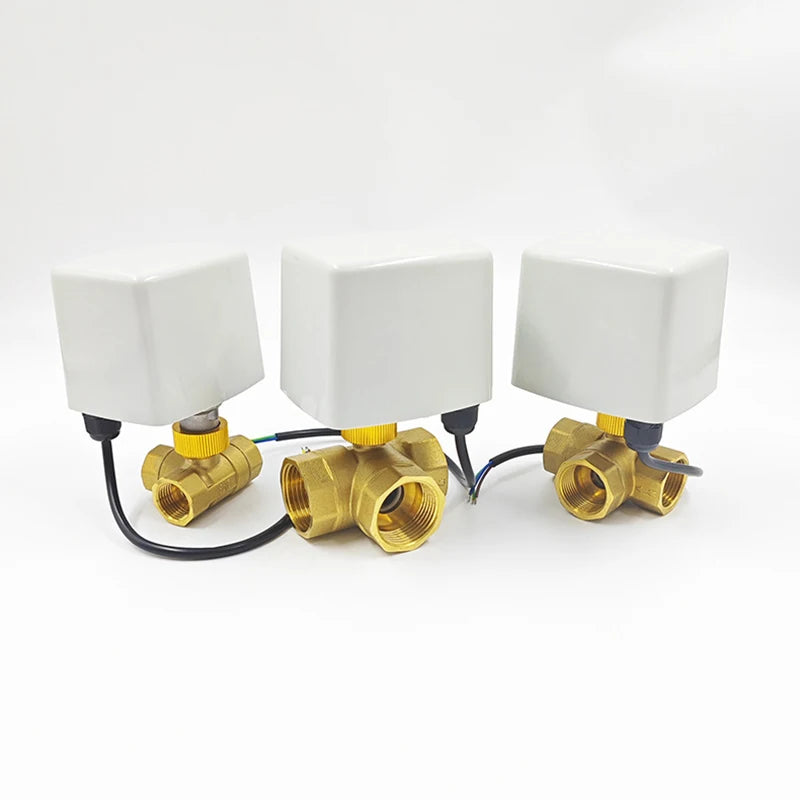

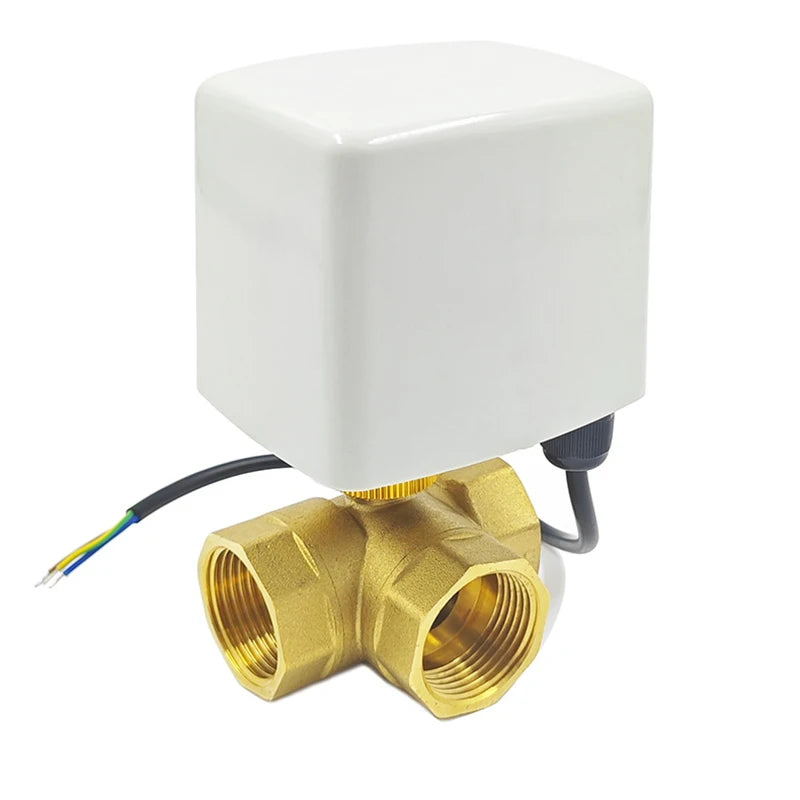

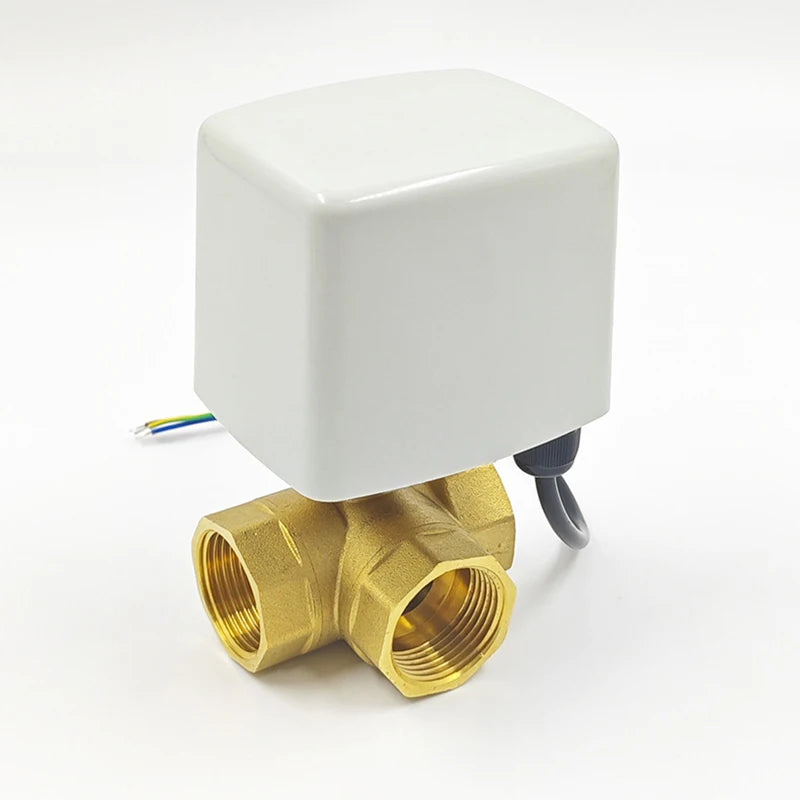

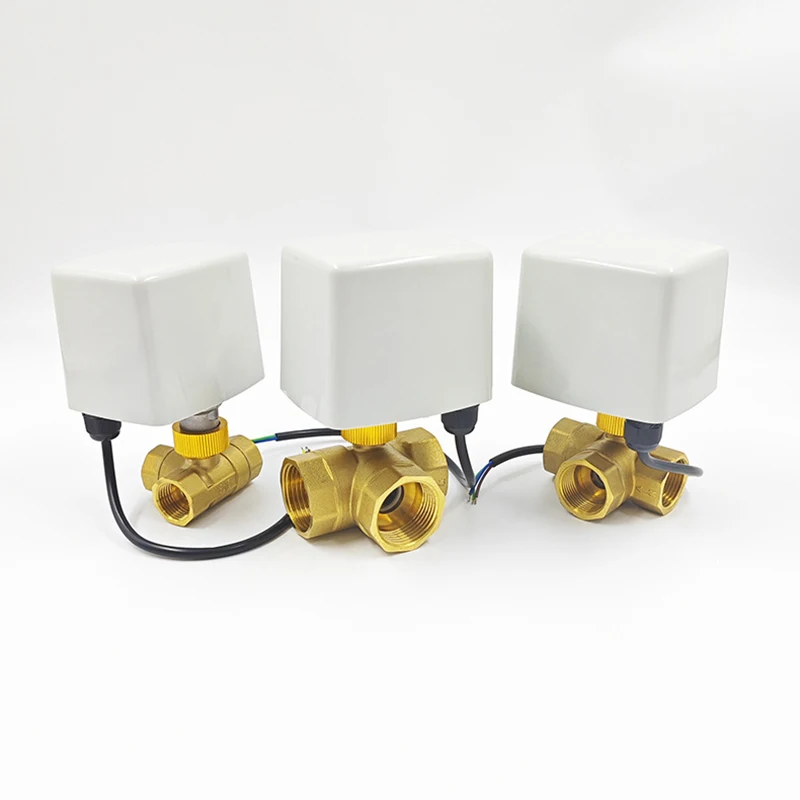

1/2" 3/4" 1" 1-1/4" 1-1/2" Brass 3-Way Electric Ball Valve Three Wire Two Control AC220V DC24V DC12V AC24V
SPECIFICATIONS
Actuator Mode: Without Manual And Instruction
Brand Name: Acarps
Certification: CE
High-concerned chemical: None
Material: Brass
Media: Water
Origin: Mainland China
Port Size: 1/2" 3/4" 1" 1-1/4" 1-1/2"
Power: Electric
Power Source: AC
Pressure: Low Pressure
Standard or Nonstandard: Standard
Structure: Ball
Temperature of Media: Normal Temperature
Product description:

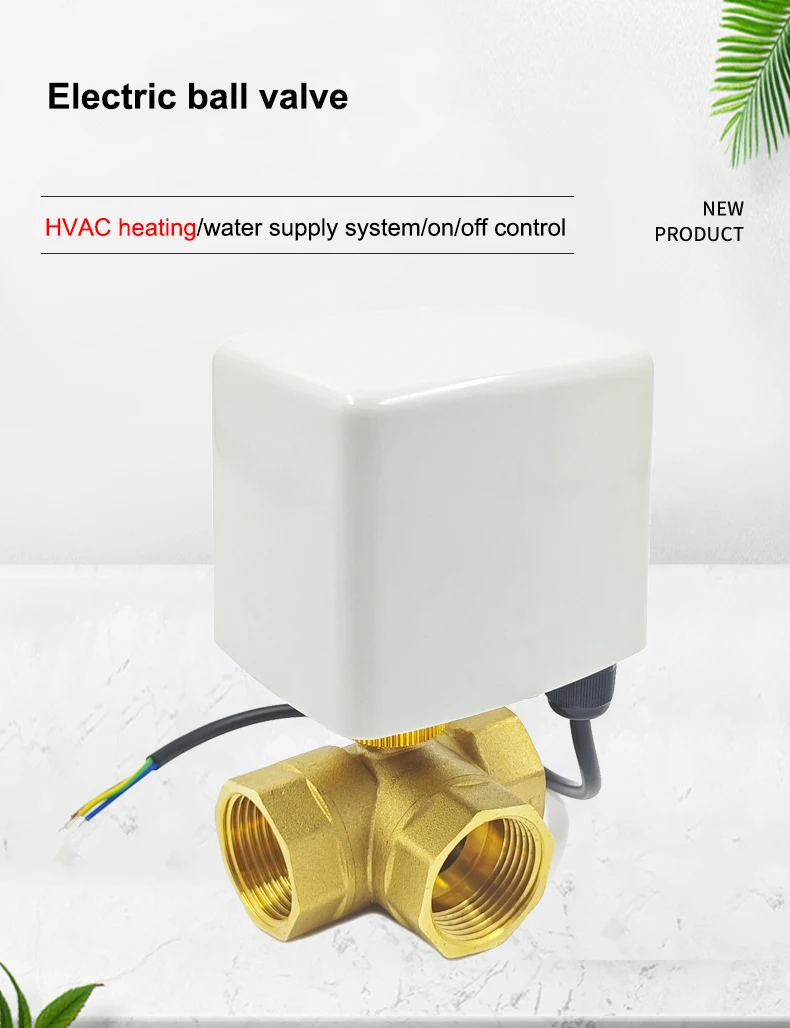

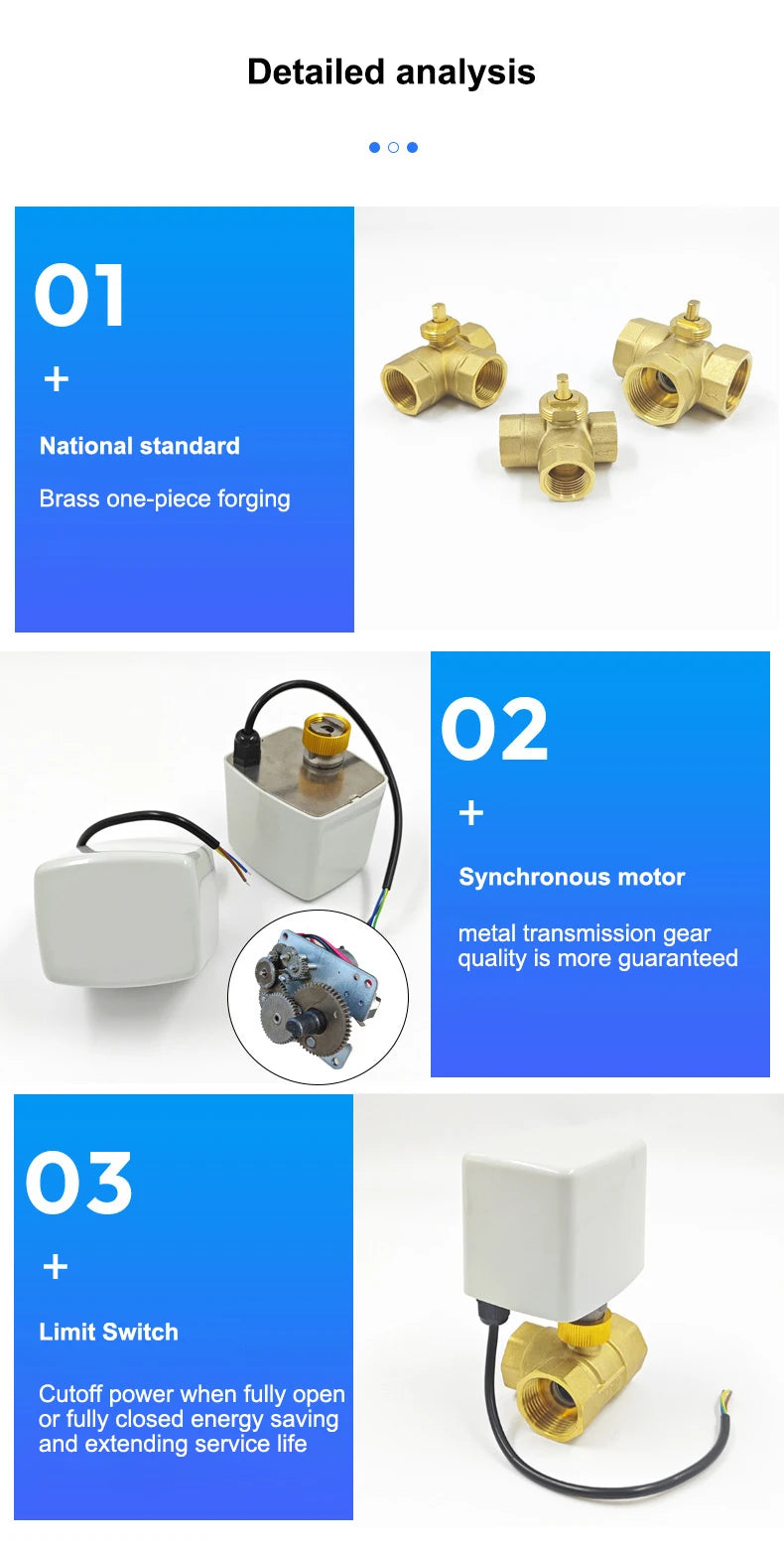

The electric ball valve is composed of a valve body and a driver. It has the advantages of simple structure, reliable work, strong fluid passing capacity and energy saving. It can be widely used in heating, central air-conditioning, solar hot water system, water treatment system cold and hot water switch control.
Specification
Applicable medium: cold, hot water or 50% glycol solution
material: Brass

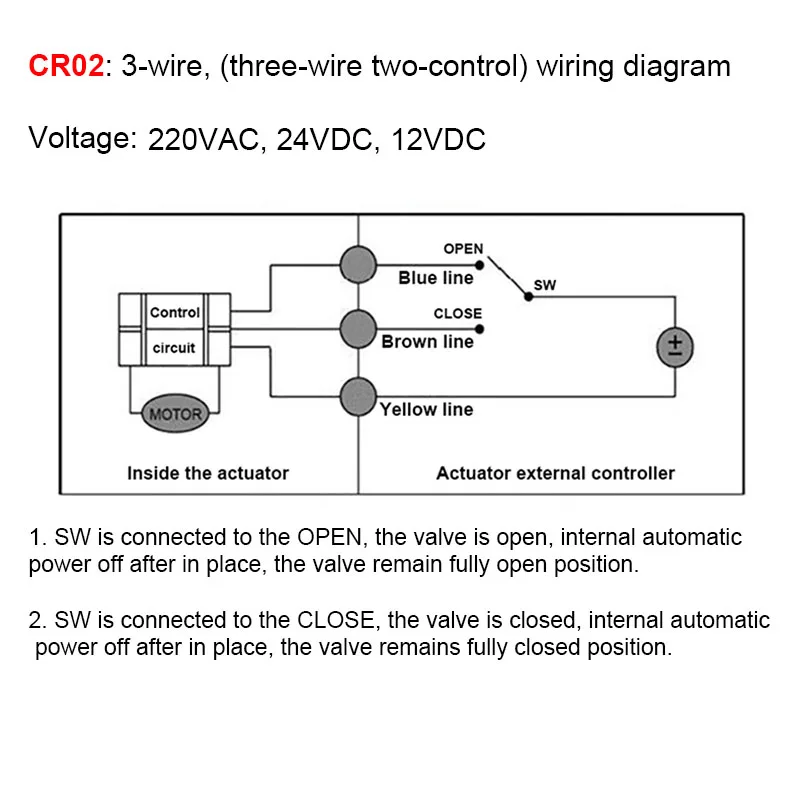

Control method: Three wire two control

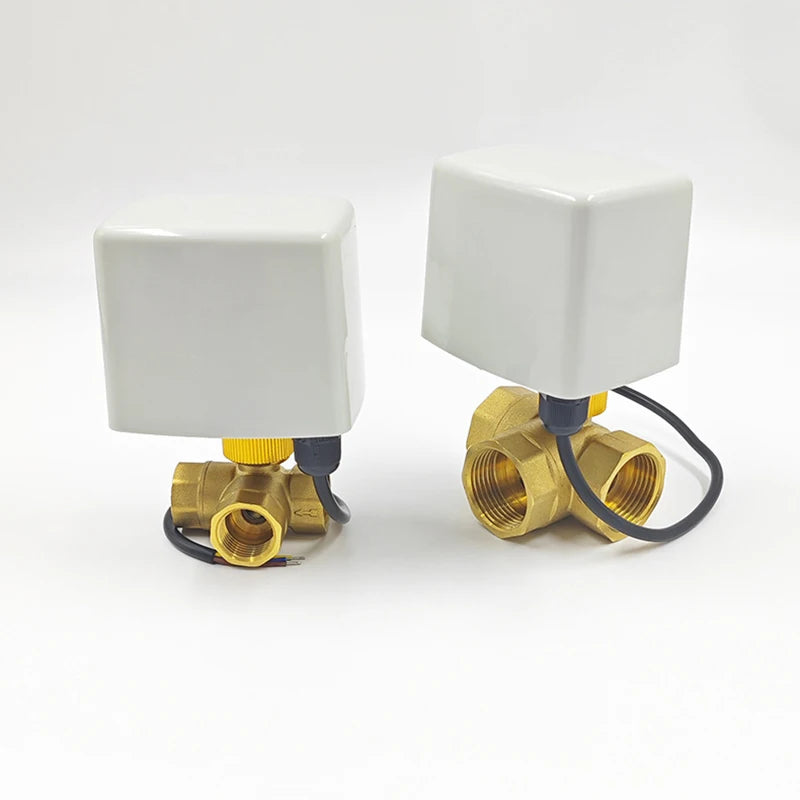

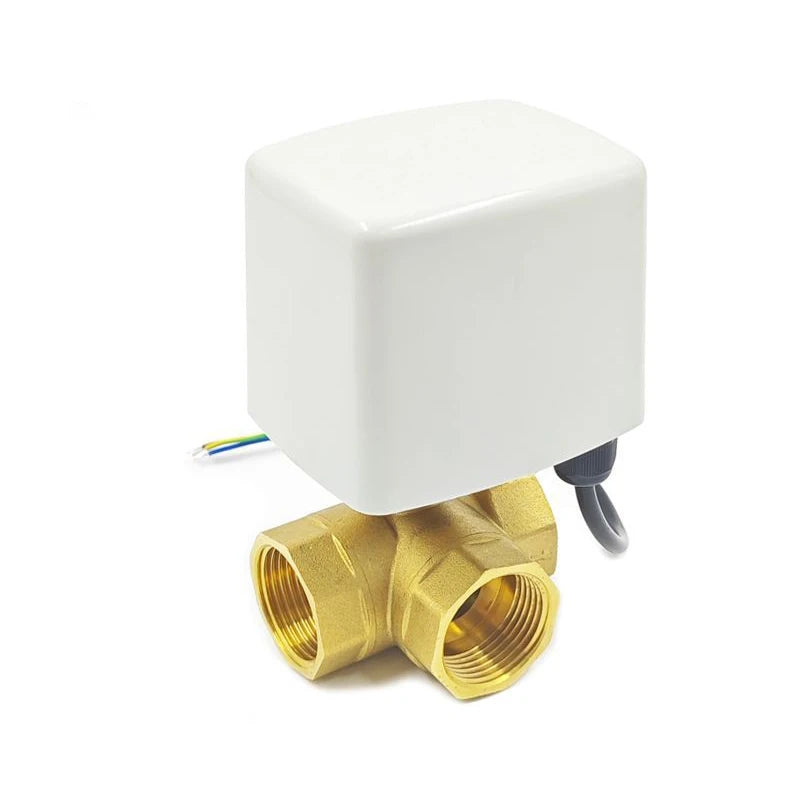

Structure Forms: Three way
Driving voltage: AC220V AC24V DC24V DC12V
Power: 6W (Only when the valve is opened and closed)
Life Time: 100000 times
Play time: 5-15 seconds
Drive torque: 8 N.M
Nominal pressure: 1.6MPa
Applicable medium temperature: 0-95℃
Applicable ambient temperature: 0-65℃
Connection method: G internal thread
