1/2" 3/4" 1" 1-1/4" 1-1/2" 3 Way Motorized Ball Valve T/L Type 220V 24V 12V 3 Wire 2 Control Electric Ball Valve
Dhs. 377.99
SPECIFICATIONS
Brand Name: NoEnName_Null
High-concerned chemical: None
Is Smart Device: No
Material: Brass
Media: Water
Origin: Mainland China
Power Source: AC
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Structure: Ball
Temperature of Media: Normal Temperature
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Three Ways,
Operation Mode: Three Wire Two Ways Control
Power: 6W (Only when the valves open and close)
Running Time: 8-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa

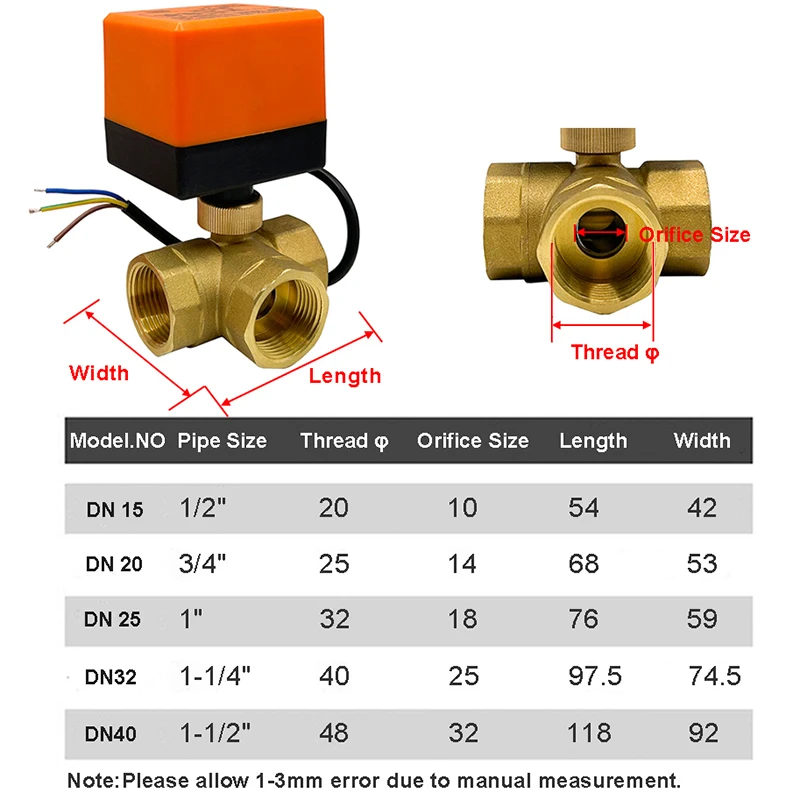

Connection Mode: G Internal Thread
Torque：220V 8 N.M, DC12/24V 8 N.M
Waterproof level：IP54

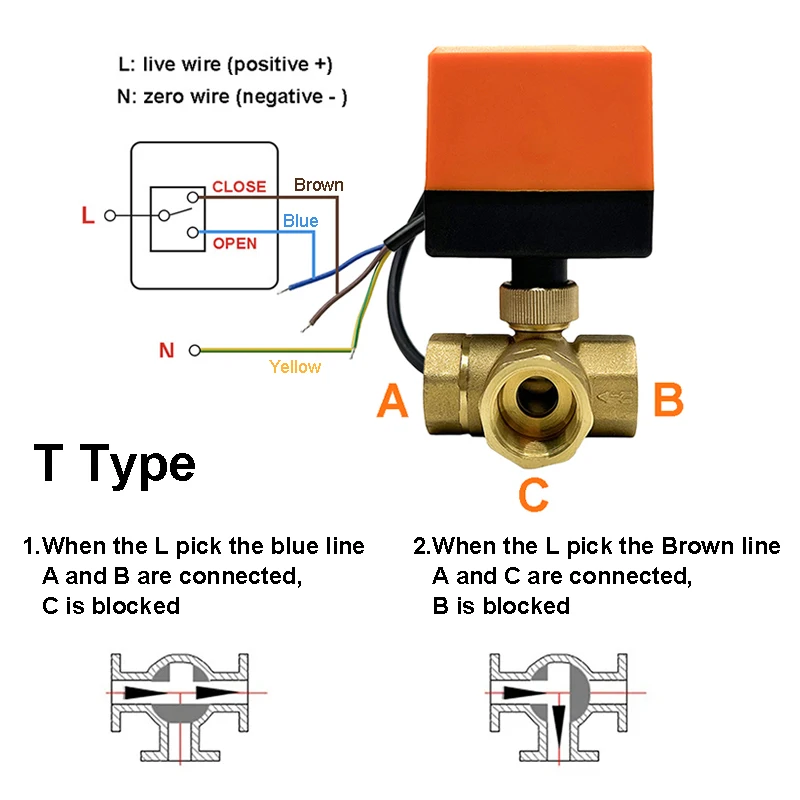

T type：
1.When the L pick the blue line,A and B are connected, C is blocked.
2.When the L pick the Brown line,A and C are connected, B is blocked.

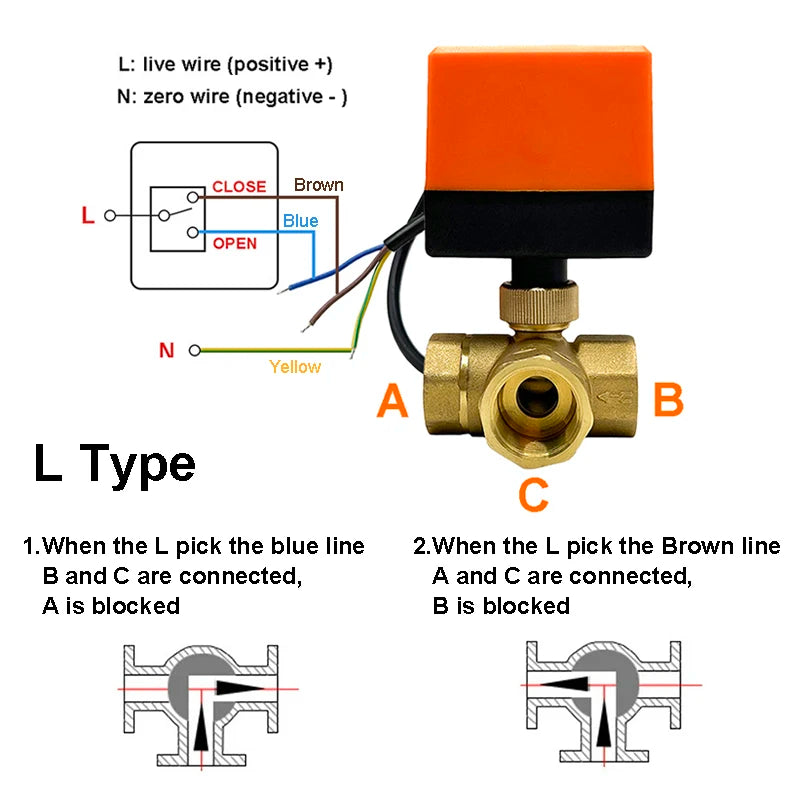

L type：
1.When the L pick the blue line,B and C are connected,A is blocked.
2.When the L pick the Brown line,A and C are connected,B is blocked.
